Plant photosynthesis meters
Plant photosynthesis meters

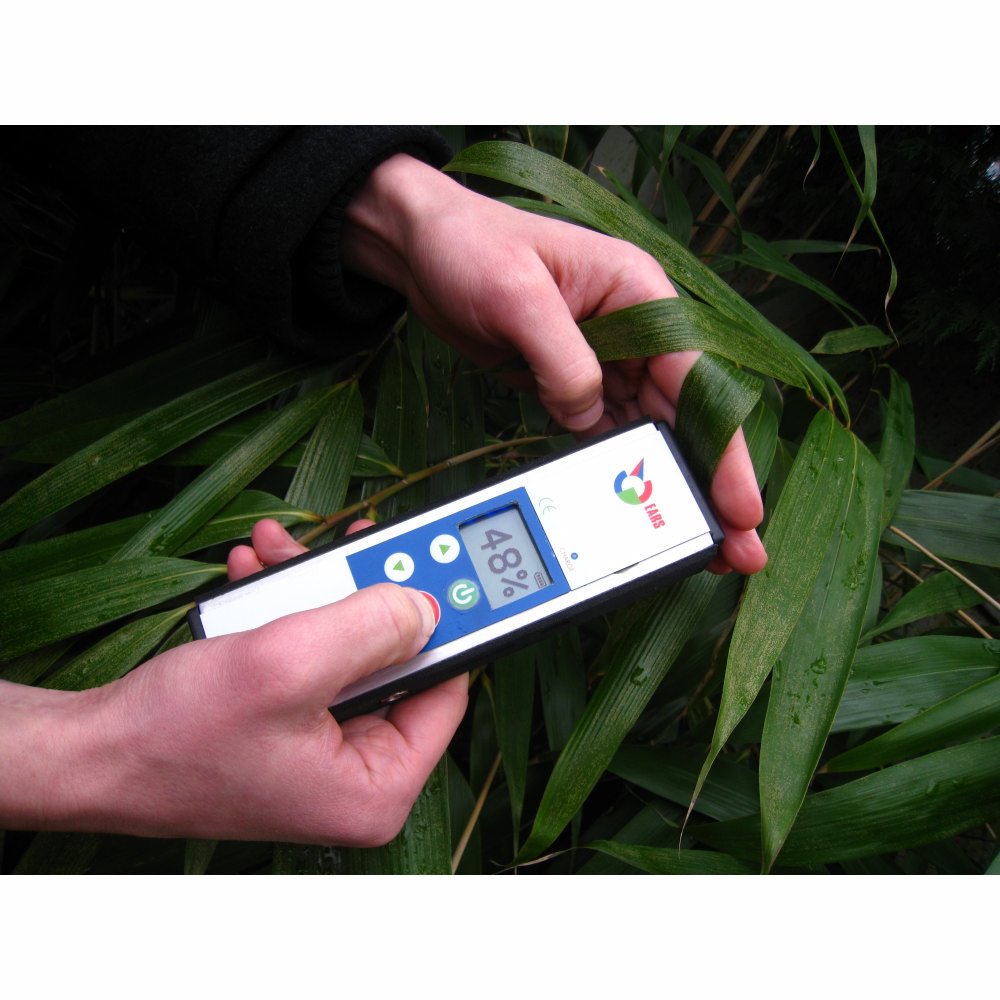

The EARS miniPPM is a handheld chlorophyll-fluorescence meter: clip it on a leaf, press the button, and the photosynthesis of the plant is measured within a second. 250 grams, about 3,000 measurements per charge, one-year warranty, shipped from the Netherlands. Two models, depending on how deep you want to look.
miniPPM-100
Entry model
EARS miniPPM-100 Plant Photosynthesis Meter
Chlorophyll fluorescence and photosynthesis yield in one second
- Fluorescence (F) and maximum fluorescence (Fm)
- Photosynthesis yield (Y)
- Measurements at all light levels
- Read-out on the LCD display
€1,950.00
miniPPM-300
Most complete
EARS miniPPM-300 Plant Photosynthesis Meter
Adds PAR, photosynthesis rate, unattended series and automatic light curves
- Everything the miniPPM-100 measures
- Photosynthetic Active Radiation (PAR) and photosynthesis rate (P)
- Pre-defined light levels and light-photosynthesis curves
- Long unattended series; storage on board, microSD and PC (USB)
€4,000.00
Which miniPPM do you need?
| miniPPM-100Entry model | miniPPM-300Most complete | |
|---|---|---|
| Fluorescence in ambient light (F) | ||
| Maximum fluorescence (Fm) | ||
| Photosynthesis yield (Y) | ||
| Measurements at all light levels | ||
| Photosynthetic Active Radiation (PAR) | — | |
| Photosynthesis rate in ambient light (P) | — | |
| Long unattended measuring series | — | |
| Photosynthesis at pre-defined light levels | — | |
| Light-photosynthesis curves | — | |
| Read-out and storage on microSD card | — | |
| On-board control and storage | — | |
| PC control (USB) and storage | — | |
| Price (excl. VAT) | €1,950.00 | €4,000.00 |
| View miniPPM-100 | View miniPPM-300 |
What growers and researchers use it for
Herbicide efficacySee the effect of a treatment on photosynthesis within hours instead of waiting for visible damage.
Quality of plants, vegetables and fruitAn objective vitality reading for grading, storage and transport decisions.
Seedling screening for breedingRank seedlings and lines by photosynthetic performance early in the programme.
Greenhouse light climateMeasure the light level at which to start screening: screen once the yield drops below 40%.
Irrigation managementDetect drought stress in the leaf before it shows.
EducationA direct look at how healthy a plant is and how it grows.
In the box
- Protective case
- USB data cable and USB charger, 4-piece adapter set
- 2 GB microSD card and microSD-to-USB adapter
- English / Dutch manual
- 1-year warranty, shipped from the Netherlands
About EARS
EARS Plant Photosynthesis Monitoring B.V. in Wageningen has worked on chlorophyll-fluorescence measurement since 1983 and patented its Plant Photosynthesis Meter in the 1990s. The miniPPM is the third generation: smaller, lighter and simpler, without compromising on accuracy. Optional on request: 12 V fast charger, RS-232 / RS-485 port, wireless PC link and a tripod stand.
